Tactical® TruBall® Rifled Slug 12 Gauge
Amazing accuracy for smoothbore shotguns can now we found with Federal Premium® Law Enforcement. The Tactical® TruBall® Rifled Slug ushers in a new generation of rifled slug systems and provides the confidence you need in standard police shotguns. Utilizing the unique TruBall system, we’re able to lock the components together, centering the slug in the barrel. This system promotes clean separation of components after muzzle exit to ensure greater down-range accuracy.
Ballistic Charts
Velocity:
Energy:
Wind Drift:
Wind Drift in Inches (at 10 MPH Crosswind)
Average Range:
Trajectory for a 50 yards zero with a sight height of 0.5 inches.
Specifications:
Part Number: LEB127 LRS
Slug Type: TRUBALL® Rifled Slug
Gauge: 12
Shell Length (Inches/MM): 2 3/4 / 70
Slug Weight (Ounces/Grains): 1 / 438
Test Barrel Length in Inches: 30
Ballistic Coefficient: 0.07
Velocity in Feet Per Second
| Yards | Velocity |
|---|---|
| Muzzle: | 1300 |
| 25: | 1146 |
| 50: | 1040 |
| 75: | 966 |
| 100: | 909 |
Energy in Foot Pounds
| Yards | Energy |
|---|---|
| Muzzle: | 1643 |
| 25: | 1277 |
| 50: | 1052 |
| 75: | 908 |
| 100: | 803 |
Wind Drift in Inches (at 10 MPH Crosswind)
| Yards | Wind Drift |
|---|---|
| 25: | 0.7 |
| 50: | 2.7 |
| 75: | 5.7 |
| 100: | 9.6 |
Average Range *
| Yards | Average Range |
|---|---|
| 25: | 0.6 |
| 50: |  |
| 75: | -2.6 |
| 100: | -7.4 |
* Height of Bullet Trajectory in inches above or below line of sight if zeroed at
yards. Sights 0.5 inches above bore line.

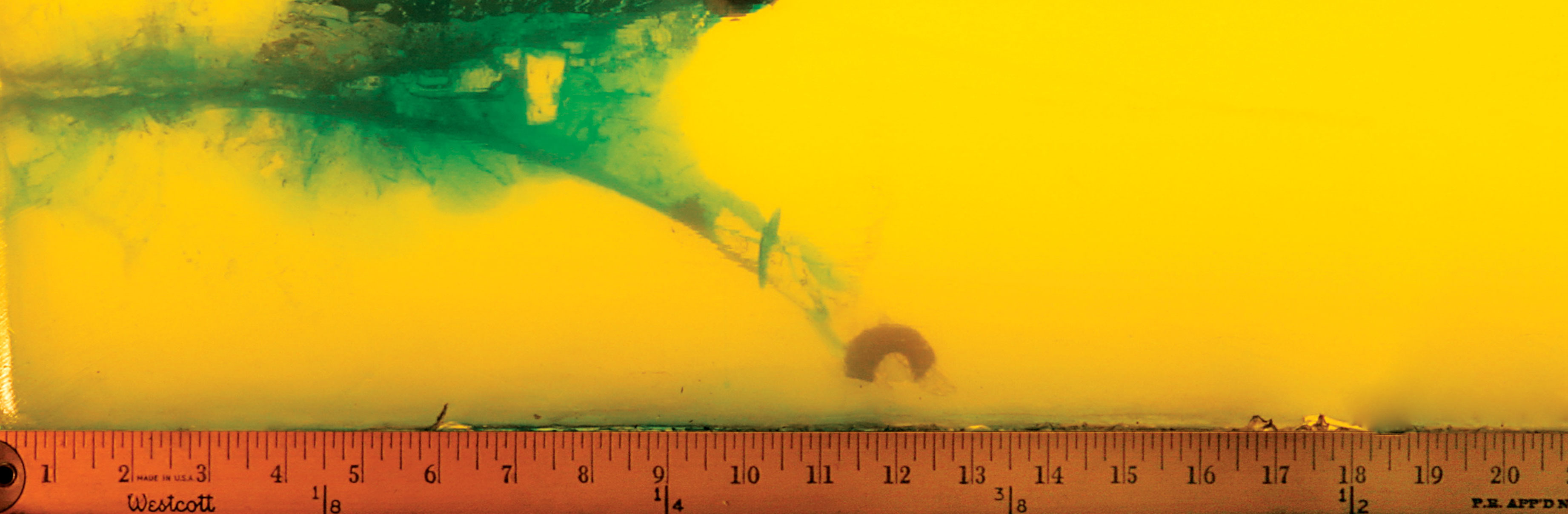

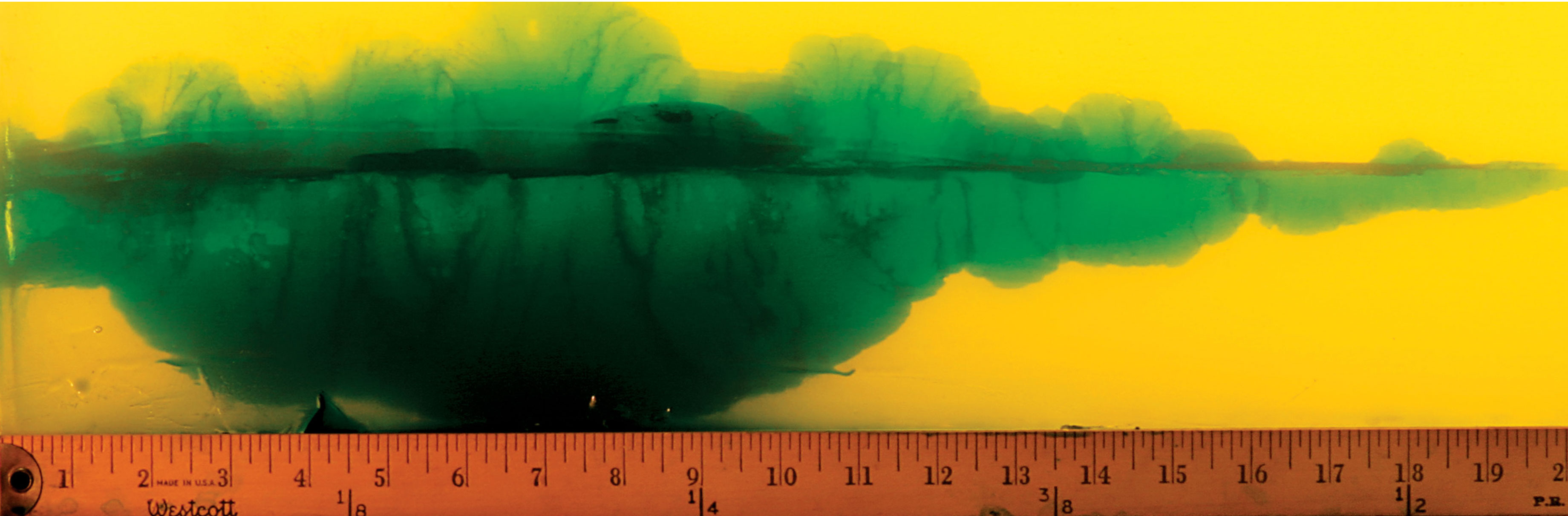

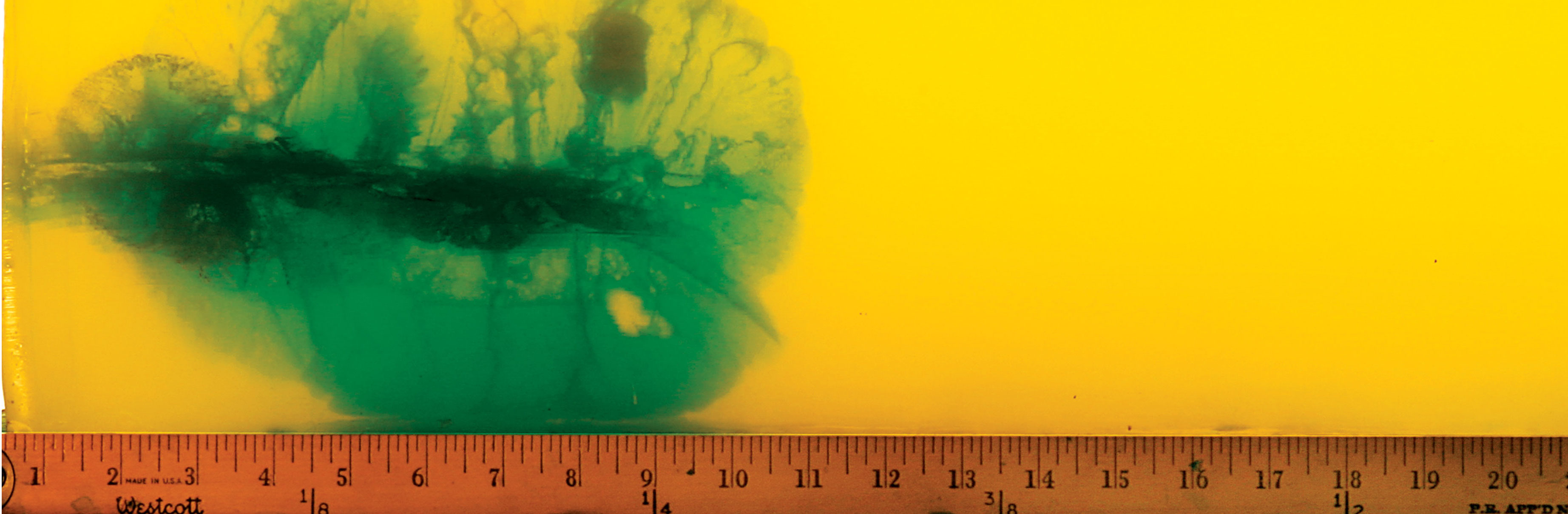

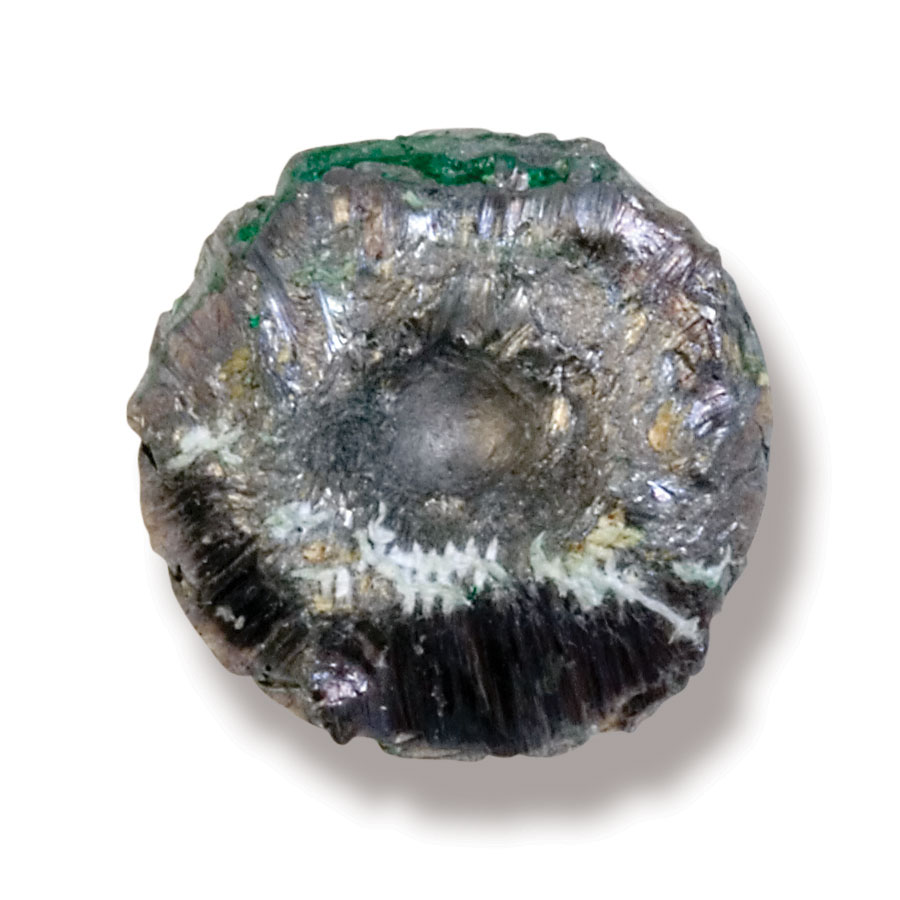

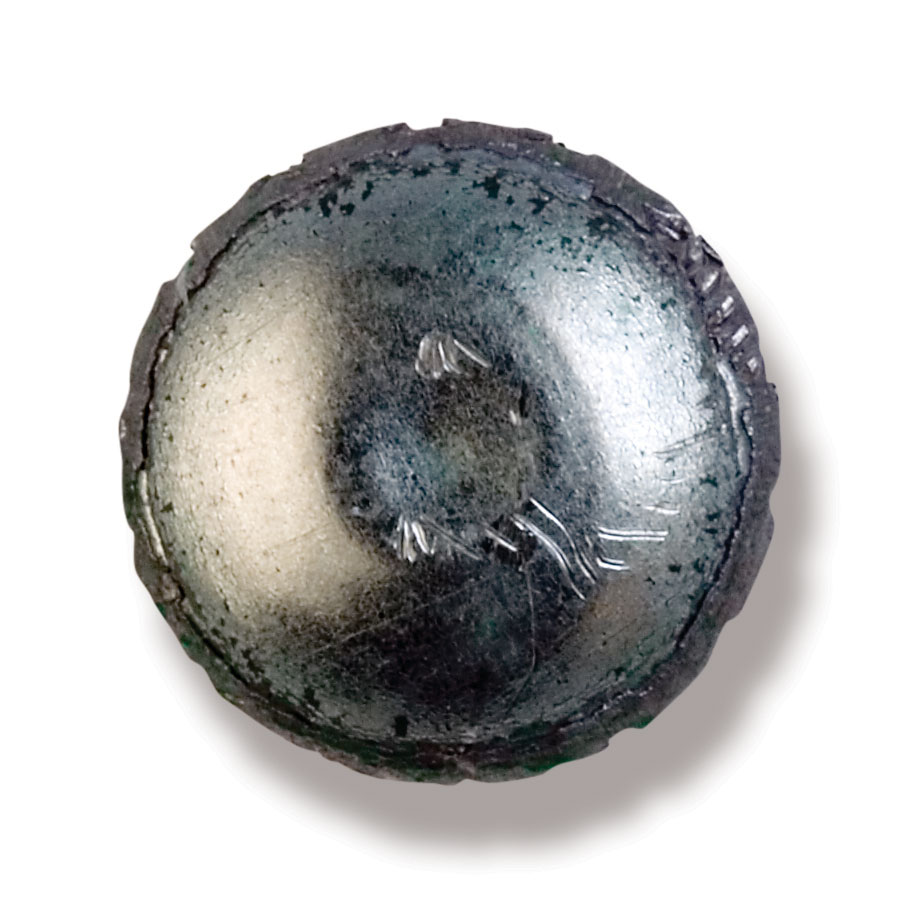

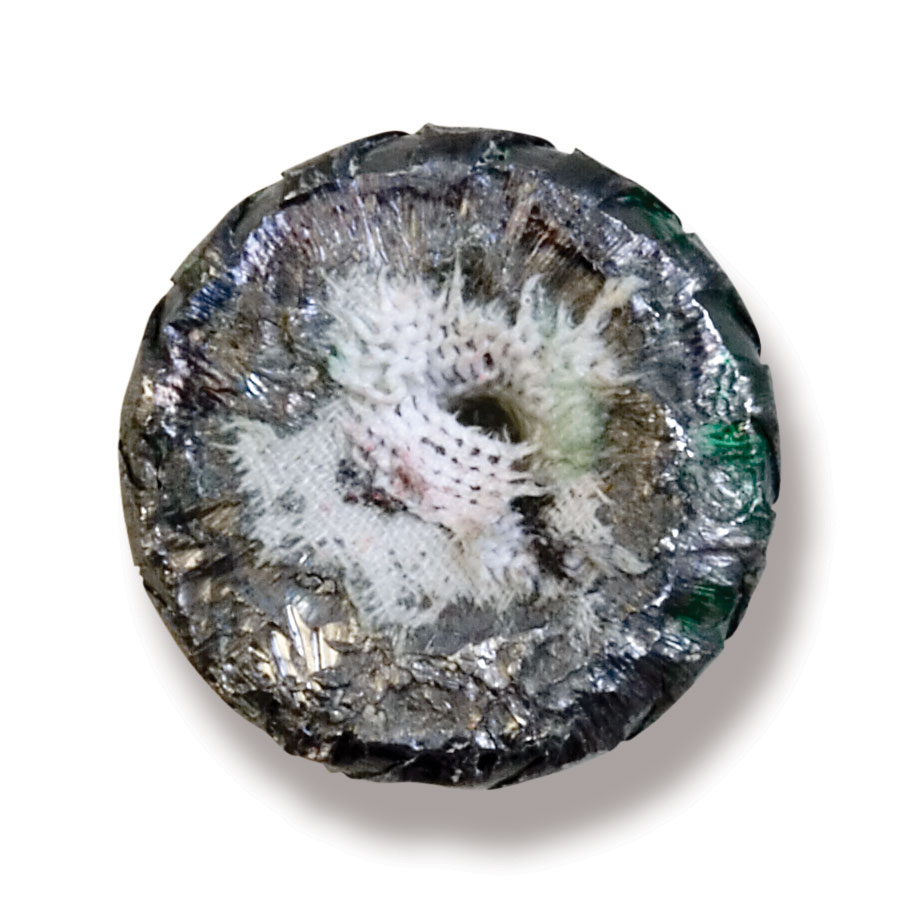

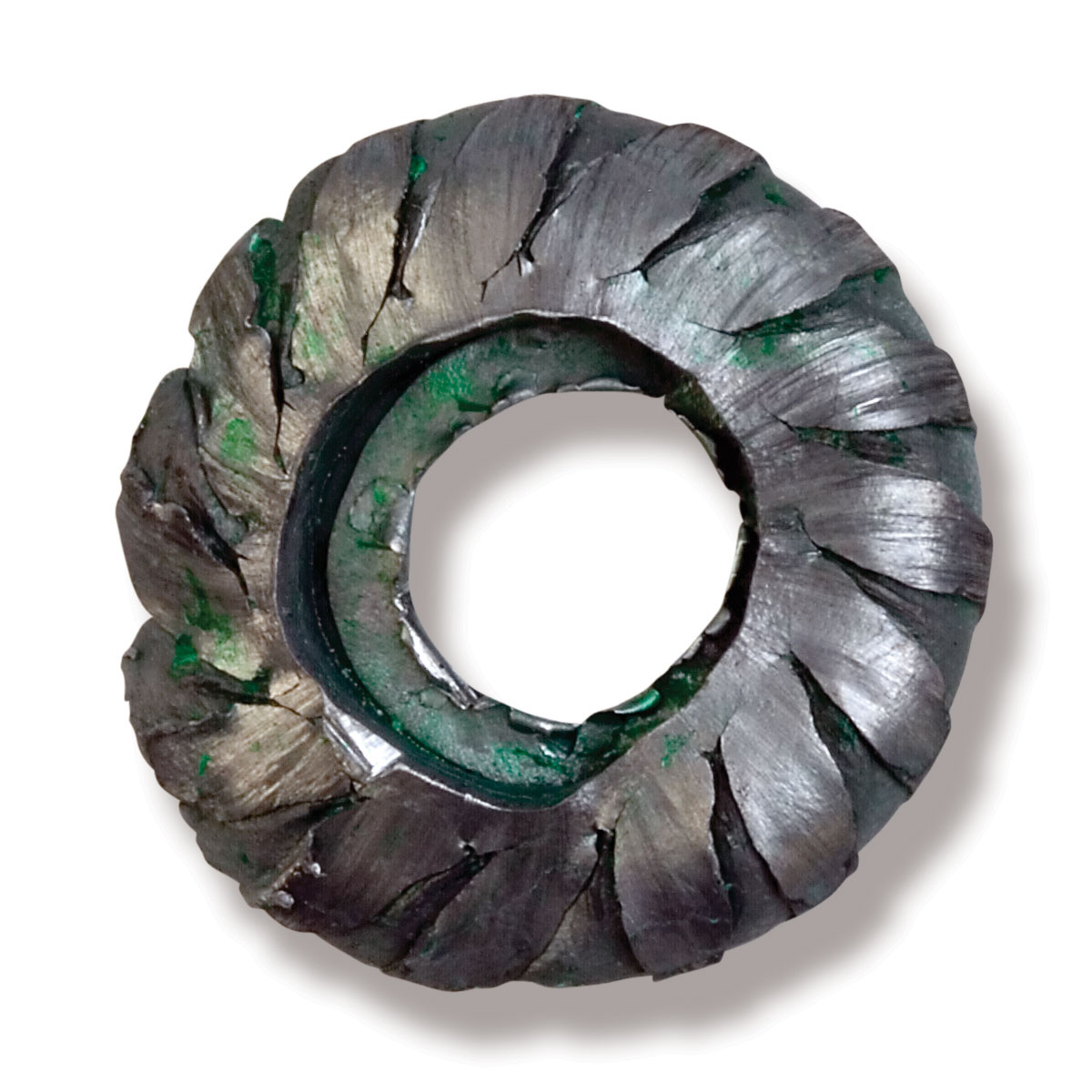

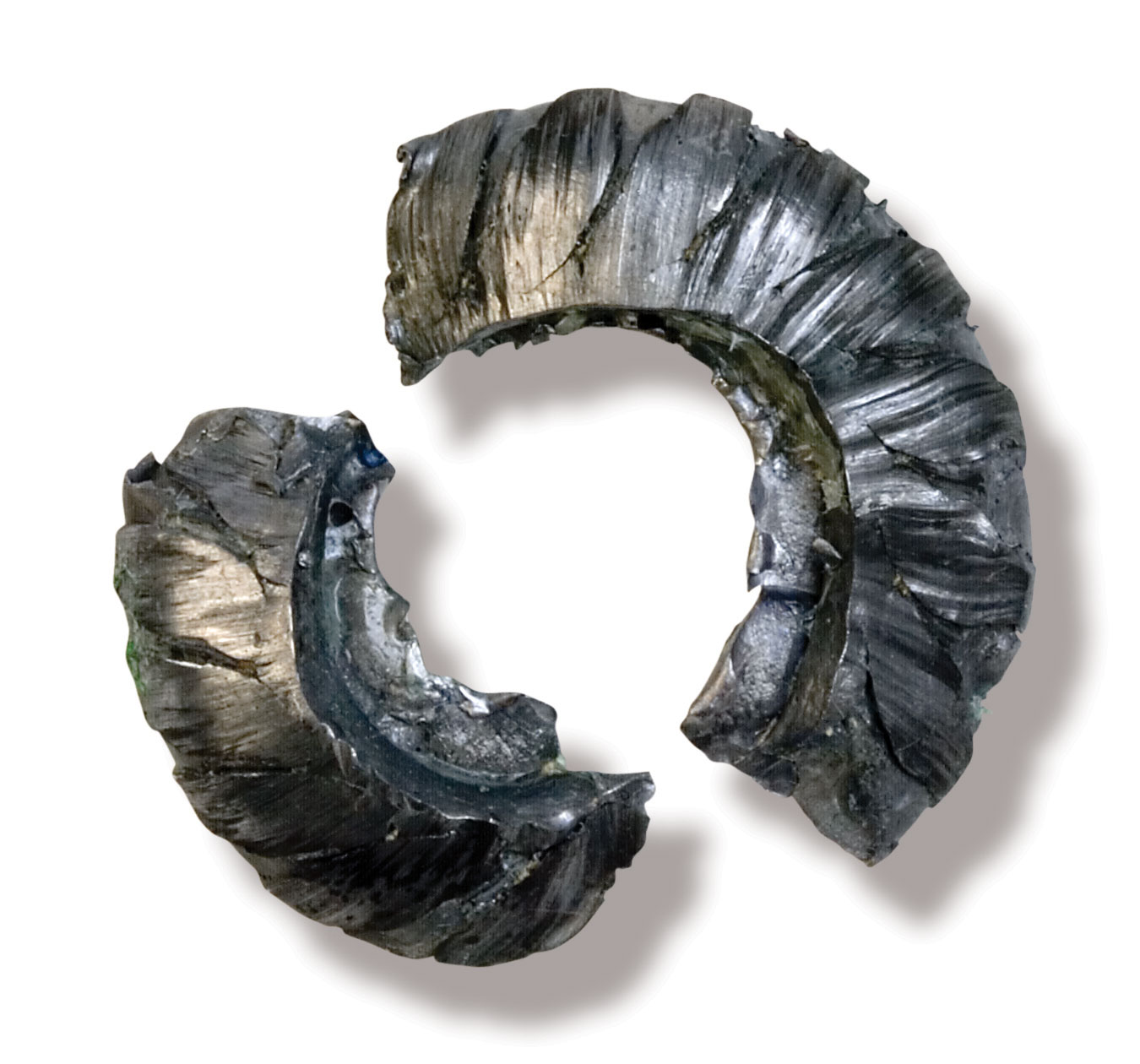

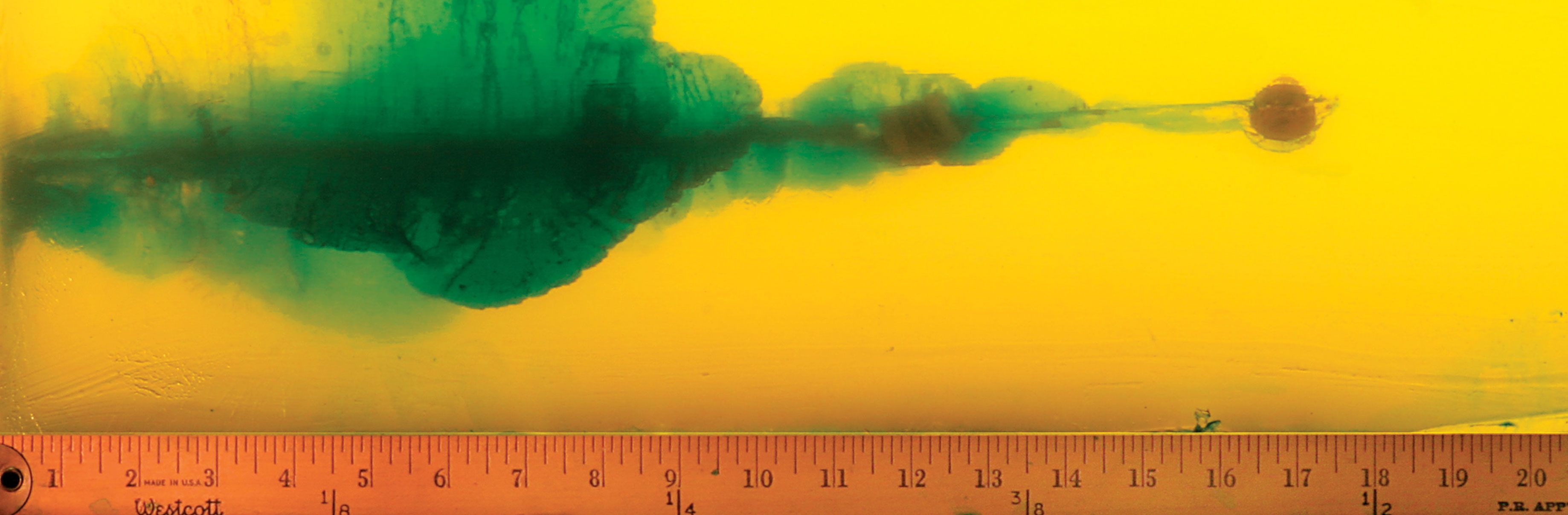

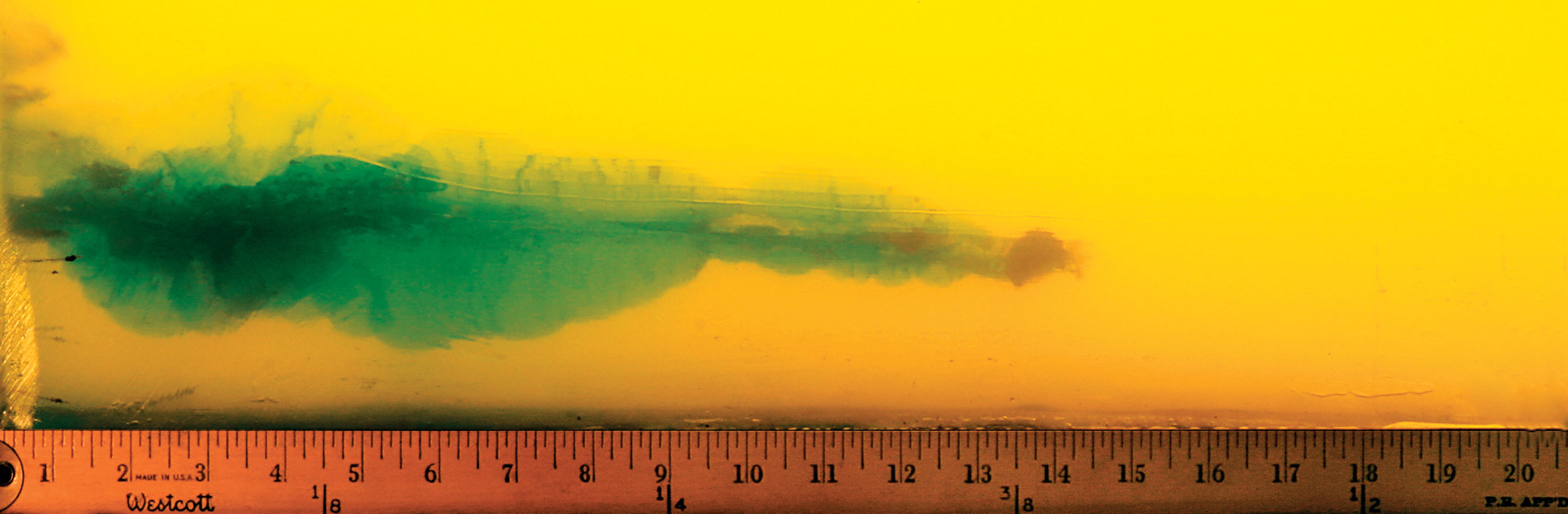

FBI Test Protocol
Product Tested | Wound Characteristics | Test Results | Recovered Bullet | |
|---|---|---|---|---|
| LEB127 LRS |  | Velocity | 1300 |  |
| 12 | Penetration | 13.75 | ||
| 438 | Expansion | 1.14 | ||
| 1300 | Retained Weight | 424.5 | ||
| Tactical Truball Rifled Slug | % Wt. Retained | 97.02 | ||
Product Tested | Wound Characteristics | Test Results | Recovered Bullet | |
|---|---|---|---|---|
| LEB127 LRS |  | Velocity | 1300 |  |
| 12 | Penetration | 12.75 | ||
| 438 | Expansion | 1.07 | ||
| 1300 | Retained Weight | 427.8 | ||
| Tactical Truball Rifled Slug | % Wt. Retained | 97.78 | ||
Product Tested | Wound Characteristics | Test Results | Recovered Bullet | |
|---|---|---|---|---|
| LEB127 LRS |  | Velocity | 1300 |  |
| 12 | Penetration | 23.00 | ||
| 438 | Expansion | 0.89 | ||
| 1300 | Retained Weight | 479.3 | ||
| Tactical Truball Rifled Slug | % Wt. Retained | 109.54 | ||
Product Tested | Wound Characteristics | Test Results | Recovered Bullet | |
|---|---|---|---|---|
| LEB127 LRS |  | Velocity | 1300 |  |
| 12 | Penetration | 17.50 | ||
| 438 | Expansion | 0.88 | ||
| 1300 | Retained Weight | 431.7 | ||
| Tactical Truball Rifled Slug | % Wt. Retained | 98.67 | ||
Product Tested | Wound Characteristics | Test Results | Recovered Bullet | |
|---|---|---|---|---|
| LEB127 LRS |  | Velocity | 1300 |  |
| 12 | Penetration | 20.00 | ||
| 438 | Expansion | 0.85 | ||
| 1300 | Retained Weight | 426.7 | ||
| Tactical Truball Rifled Slug | % Wt. Retained | 97.53 | ||
Product Tested | Wound Characteristics | Test Results | Recovered Bullet | |
|---|---|---|---|---|
| LEB127 LRS |  | Velocity | 1300 |  |
| 12 | Penetration | 14.50 | ||
| 438 | Expansion | .778 | ||

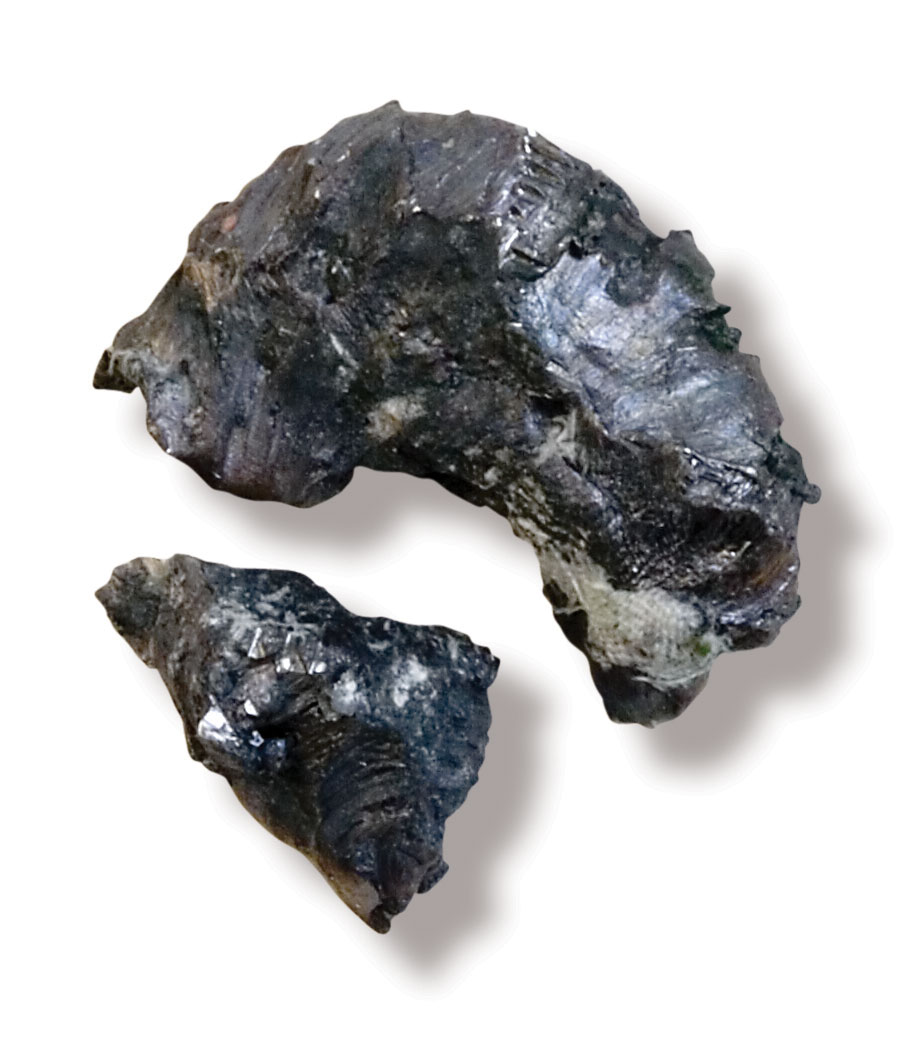

| 1300 | Retained Weight | 281.3 | ||
| Tactical Truball Rifled Slug | % Wt. Retained | 64.30 | ||
